| Optical Magnification |
2X |
| Objective Lens System |
50mm |
| Field of View |
12.4°x9.3° |
| Focusing Range |
1.5m .. Infinity |
| Diopter Adjustment Range |
-6 .. +4 |
| Eyerelief |
Min. 50mm |
| FPA Type |
Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation) |
| FPA Resolution and Pitch |
640×480, 17μm |
| FPA Sensitivity (NETD) |
<50mK |
| FPA Refresh Rate |
50Hz |
| Digital Zoom |
1X, 2X, 4X, 8X |
| Internal Display |
Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800×600 |
| Imaging Modes |
Monochrome (White-Hot / Black-Hot) and Multiple Colour Palettes |
| Shot-Initiated FOV Feature (SIF) |
Built-In Adjustable Shock Sensor |
| Digital Passive Stadiametric Rangefinder (SRF) |
Yes |
| Digital Detail Enhancement Feature (DDE) |
Yes |
| Wide Dynamic Range Feature (WDR) |
Yes |
| Stow Safety Feature (SSF) |
Yes |
| Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) |
Optional: 3-Axis Sensors – Magnetometer, Accelerometer and Gyroscope |
| Integrated Compass |
Optional |
| Pitch / Roll / Azimuth Indications |
Optional |
| Real-Time Date-Time Stamp |
Yes: Simplified, Extended, DTG Formats |
| Digital Video Recorder with Real-Time Stamp |
Optional: Comes with removable 32GB microSD card |
| Electronic Reticles |
8+8 Patterns, Easy Zeroing / Calibration |
| Detection Capability: Man (1.7×0.5m) / NATO Target (2.3×2.3m) |
1660m / 2250m |

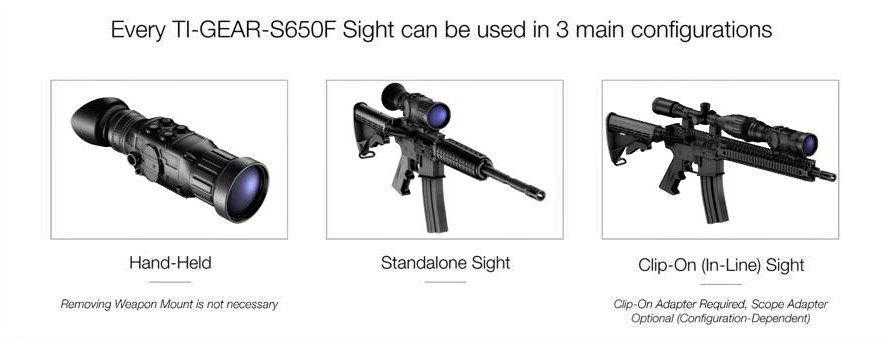

| Hand-Held Configuration |
Yes |

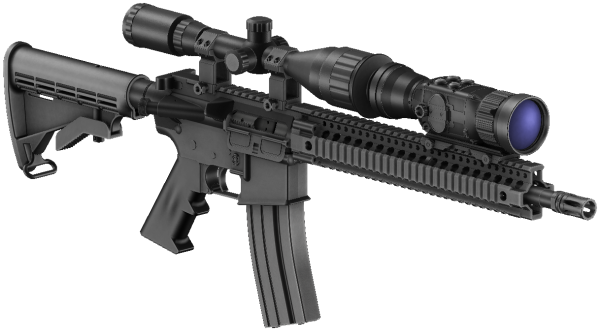

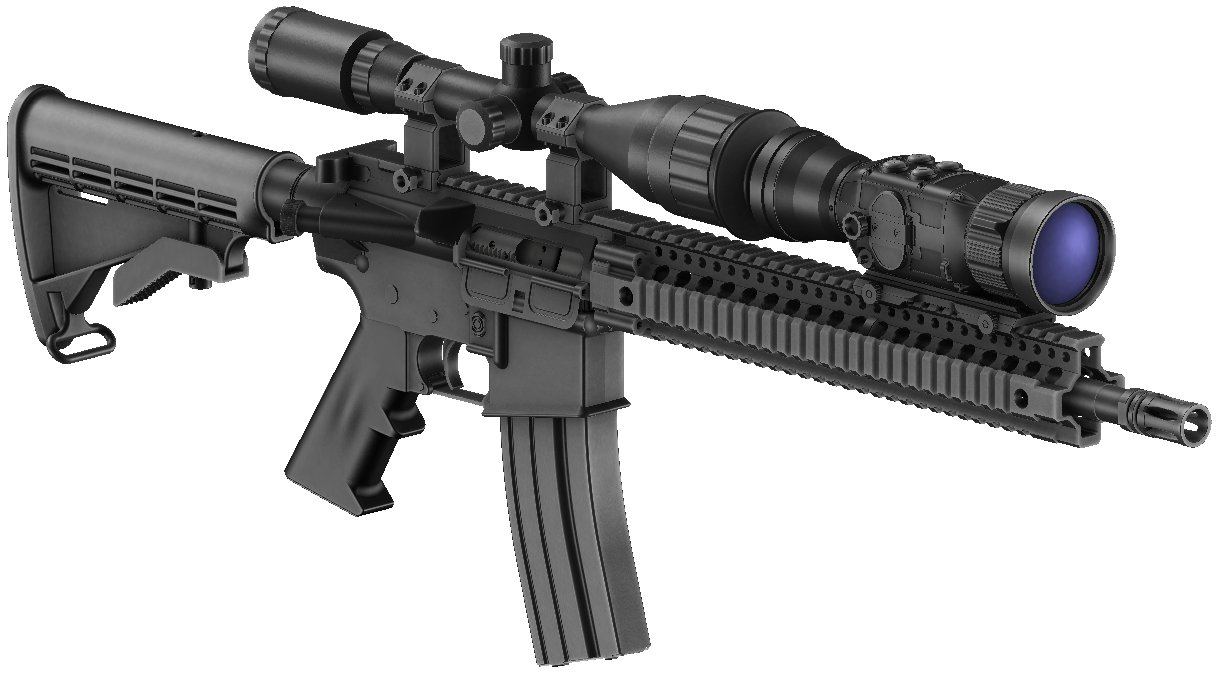

| Conversion to Clip-On (In-Line) Sight |
Yes |
| Tripod-Mountable |
Yes |
| User Profiles (Configurable) |
Yes: 8 |
| Automatic/Manual Pixel Masking |
Yes |
| Reset to Factory Defaults |
Yes |
| External Video Feed Protection |
Yes |
| Automatic Power Down Control |
User-Configurable: 10 .. 60 minutes of inactivity |
| Accepted Batteries |
2 (two) CR123 of Any Type: Lithium / Rechargeable |
| Universal Port |
Video-Out, Remote Control and External Power (4VDC .. 15VDC) |
| Battery Life on 2x CR123 |
Up to 7 Hours |
| Environmental Protection |
Fully Waterproof |
| Dimensions |
172 x 60 x 60 mm |
| Weight |
475 grams |
| Operating Temperature |
-40°C .. +50°C |
| Warranty |
7 Years, Limited |
| Export |
Available Worldwide (Canadian Export Permit Required. GSCI provides assistance in obtaining the Permit) |
